Universal 60K System
Universal 60K System
Draft preview. Purchasing is disabled.
Universal® Split System Series. 54K · 230 V. Complete ducted split system.
Item specifics
- Cooling capacity (BTU/h)
- 54000
- SEER2
- 17.5
- Voltage (V)
- 230
- Preliminary area estimate
- 2250.0 sq ft

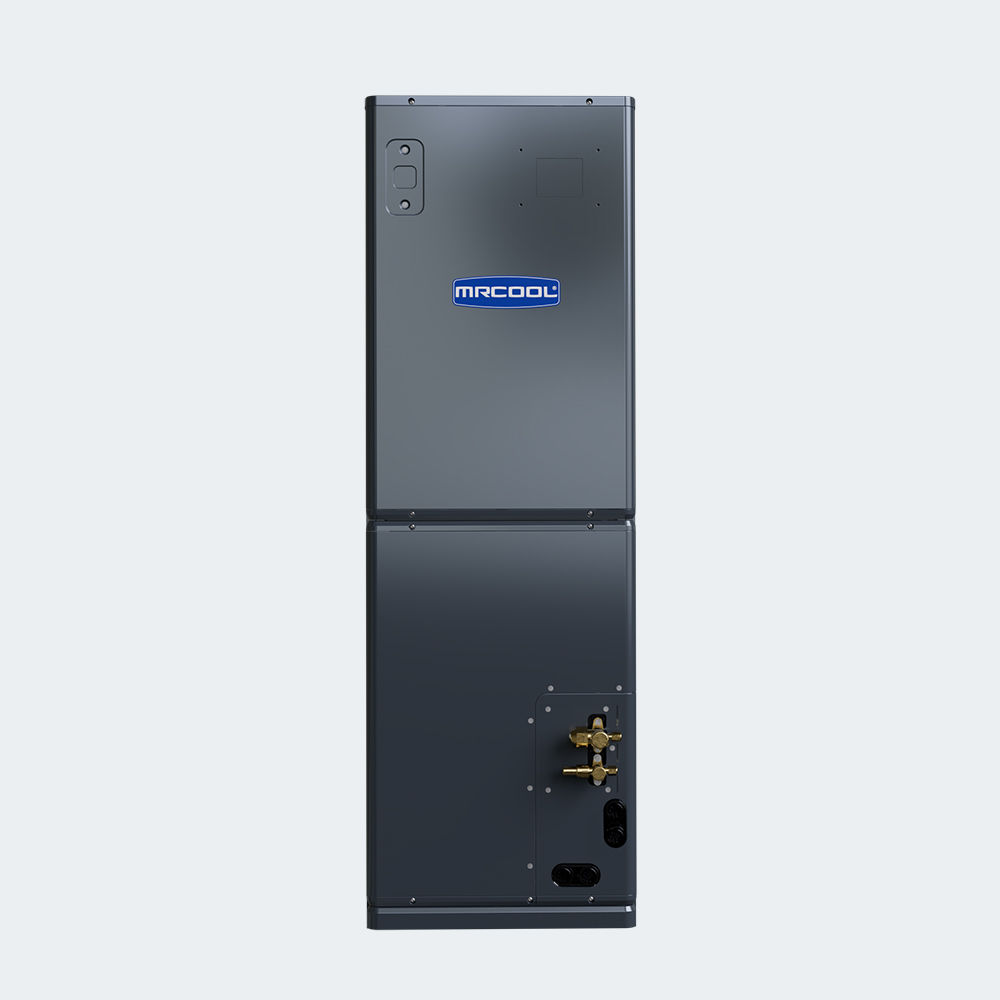

- Indoor air handler dimensions (W × D × H)
- 21.50 × 21.5 × 55.94 in
- Indoor air handler packing dimensions (W × D × H)
- 59.84 × 31.1 × 25 in
- Indoor air handler net weight
- 188.05 lb
- Indoor air handler packed gross weight
- 238.32 lb

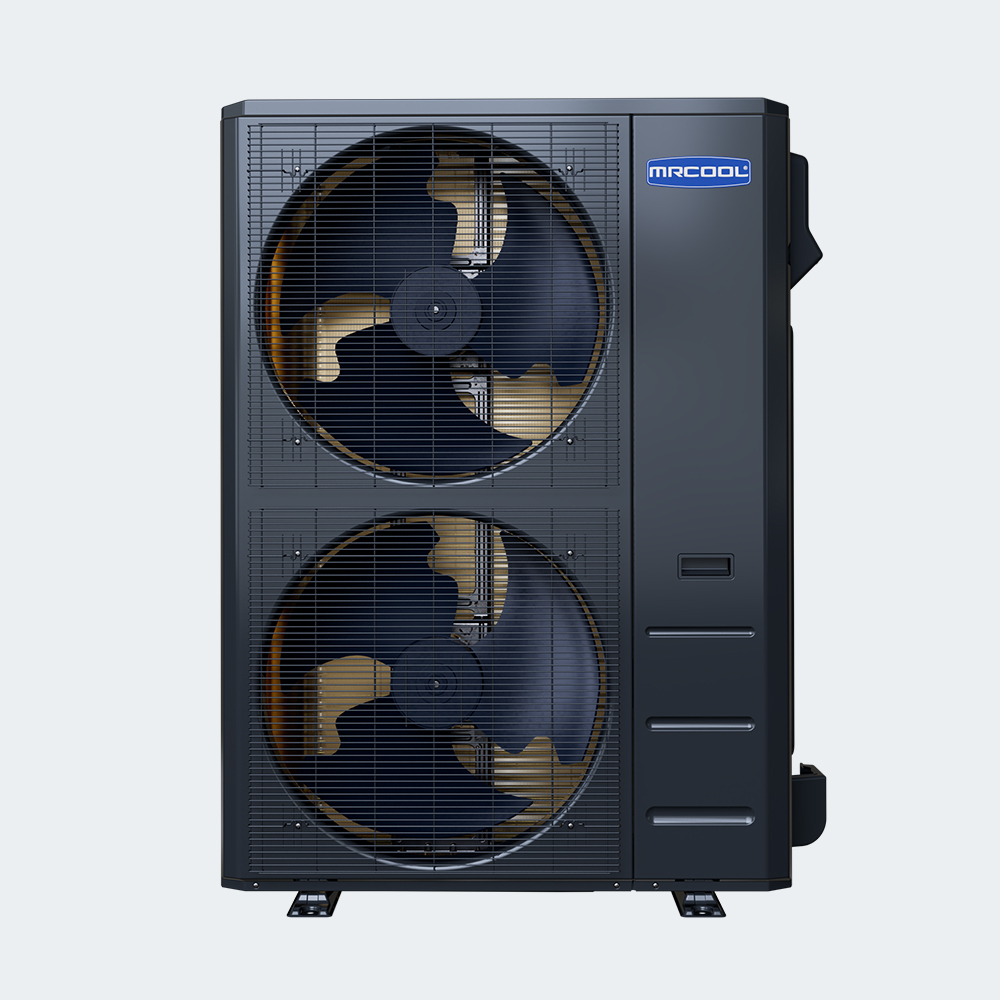

- Outdoor condenser dimensions (W × D × H)
- 37.48 × 16.34 × 52.48 in
- Outdoor condenser packing dimensions (W × D × H)
- 43.11 × 19.49 × 58.27 in
- Outdoor condenser net weight
- 242.95 lb
- Outdoor condenser packed gross weight
- 275.13 lb
- System configuration
- Matched outdoor heat pump and indoor ducted air handler
- Compatible line-set connections
- NO-VAC R-454B line set; 3/8 in liquid / 3/4 in gas
Preliminary 12K per 500 sq ft estimate, used only where exact-model coverage is not documented.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 10-year compressor · 10-year parts · 2-year labor. The catalog lists these warranty periods. Full eligibility and exclusions need verification.
Catalog image shows alternate outdoor-unit styles, not two outdoor units in one kit.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Warranty document
- Outdoor — Submittal sheet
- Outdoor — AHRI certification
- Outdoor — Energy guide
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
Free shipping
