Universal 48K System
Universal 48K System
Draft preview. Purchasing is disabled.
Universal® Split System Series. 48K · 230 V. Complete ducted split system.
Item specifics
- Cooling capacity (BTU/h)
- 48000
- SEER2
- 17.5
- Voltage (V)
- 230
- Preliminary area estimate
- 2000.0 sq ft

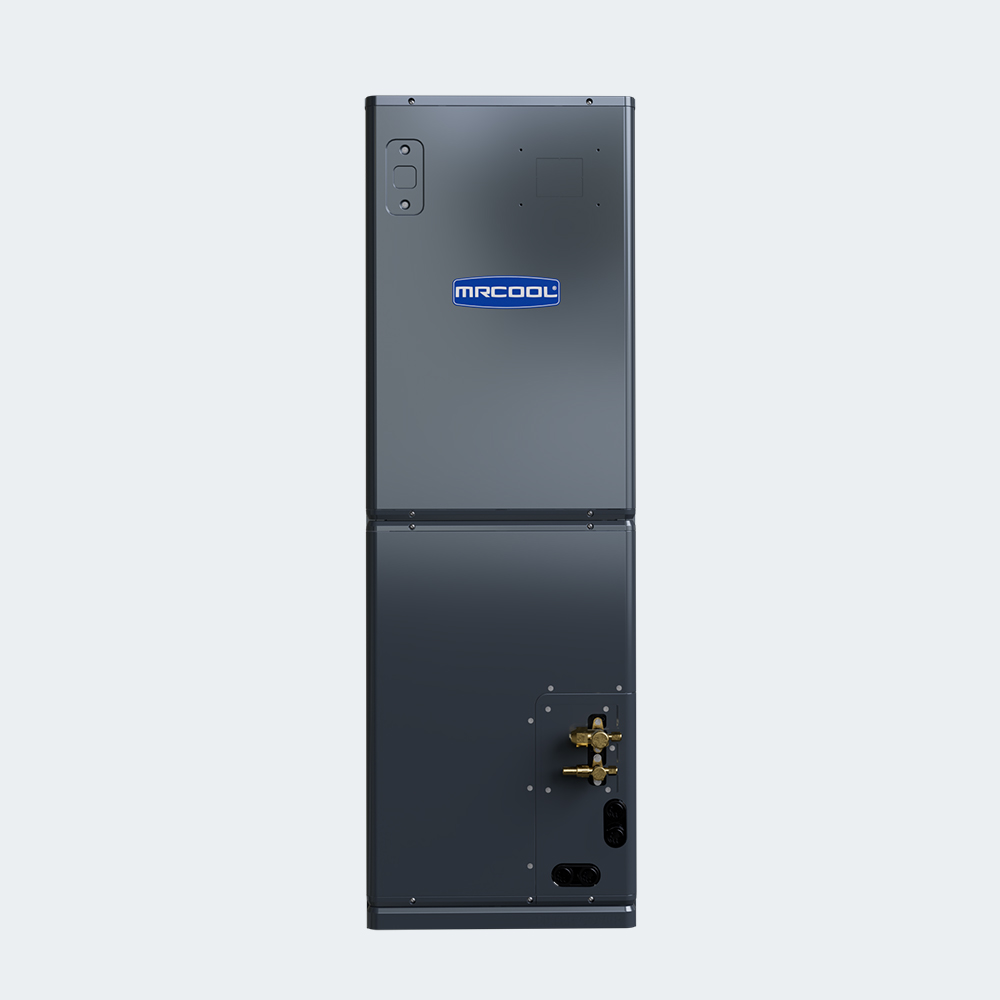

- Indoor air handler dimensions (W × D × H)
- 21.50 × 21.5 × 55.94 in
- Indoor air handler packing dimensions (W × D × H)
- 59.84 × 31.1 × 25 in
- Indoor air handler net weight
- 186.51 lb
- Indoor air handler packed gross weight
- 232.14 lb
- Outdoor condenser dimensions (W × D × H)
- 38.58 × 16.34 × 38.39 in
- Outdoor condenser packing dimensions (W × D × H)
- 45.08 × 19.68 × 42.52 in
- Outdoor condenser net weight
- 201.5 lb
- Outdoor condenser packed gross weight
- 232.59 lb
- System configuration
- Matched outdoor heat pump and indoor ducted air handler
- Compatible line-set connections
- NO-VAC R-454B line set; 3/8 in liquid / 3/4 in gas
Preliminary 12K per 500 sq ft estimate, used only where exact-model coverage is not documented.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 10-year compressor · 10-year parts · 2-year labor. The catalog lists these warranty periods. Full eligibility and exclusions need verification.

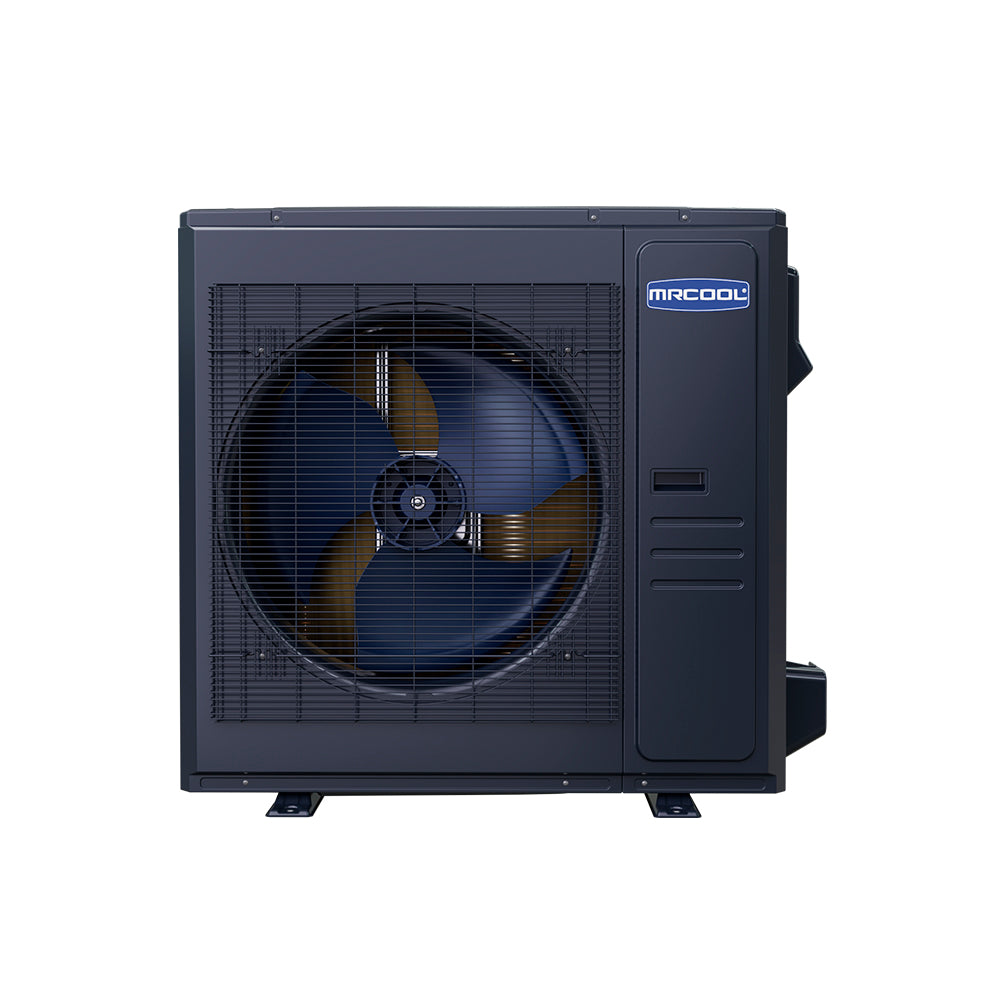

Catalog image shows alternate outdoor-unit styles, not two outdoor units in one kit.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Warranty document
- Outdoor — Submittal sheet
- Outdoor — AHRI certification
- Outdoor — Energy guide
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
