Universal® Split System Series. 24K · 230 V. Complete ducted split system.
Item specifics
- Cooling capacity (BTU/h)
- 24000
- SEER2
- 18.6
- Voltage (V)
- 230
- Preliminary area estimate
- 1000.0 sq ft

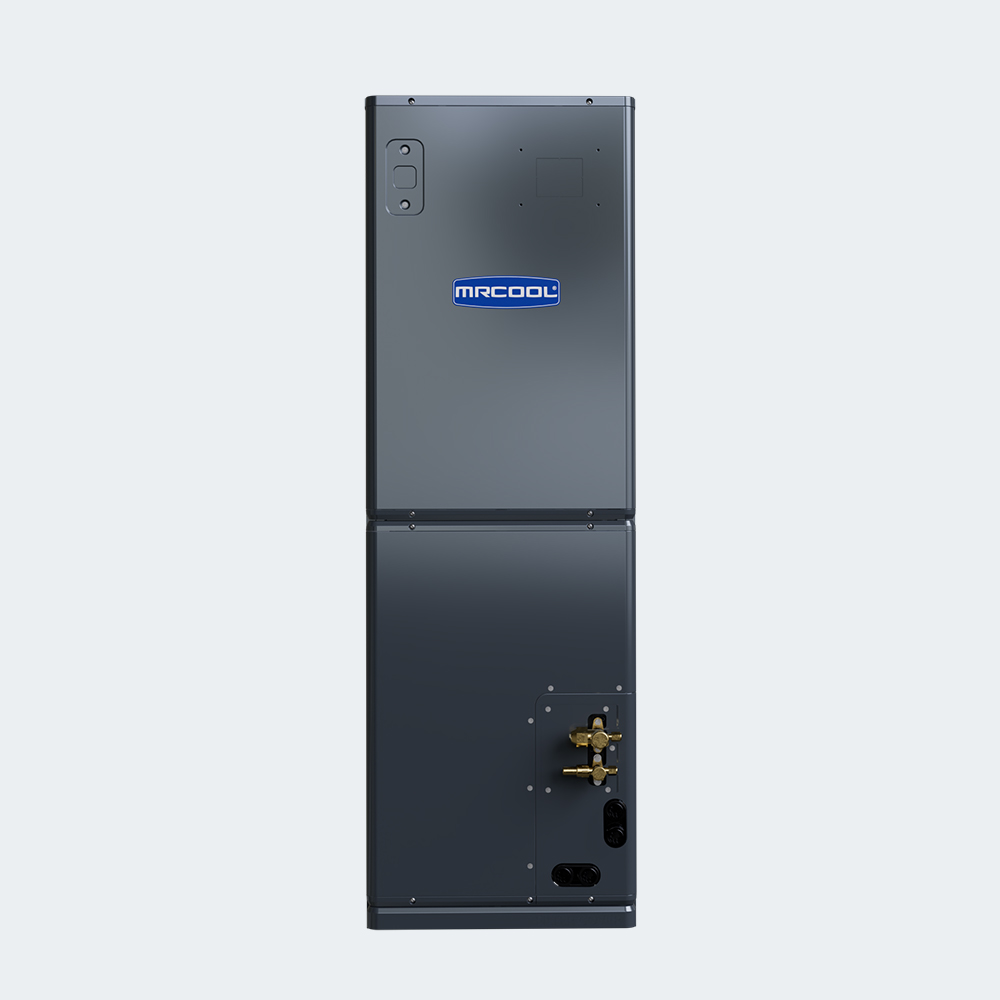

- Indoor air handler dimensions (W × D × H)
- 14.49 × 21.5 × 49.72 in
- Indoor air handler packing dimensions (W × D × H)
- 52.95 × 31.1 × 17.52 in
- Indoor air handler net weight
- 123.02 lb
- Indoor air handler packed gross weight
- 154.76 lb

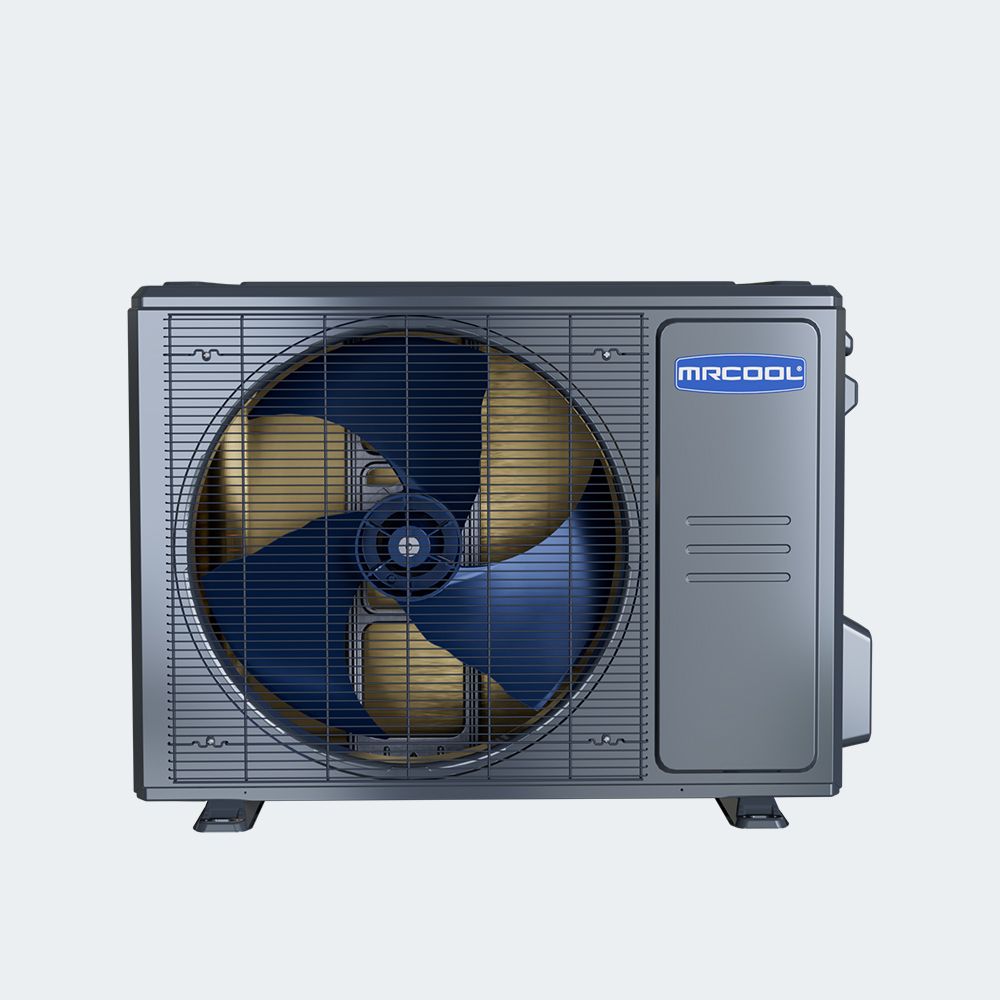

- Outdoor condenser dimensions (W × D × H)
- 35.04 × 13.46 × 26.5 in
- Outdoor condenser packing dimensions (W × D × H)
- 39.17 × 15.67 × 29.13 in
- Outdoor condenser net weight
- 102.29 lb
- Outdoor condenser packed gross weight
- 109.13 lb
- System configuration
- Matched outdoor heat pump and indoor ducted air handler
- Compatible line-set connections
- NO-VAC R-454B line set; 3/8 in liquid / 3/4 in gas
Preliminary 12K per 500 sq ft estimate, used only where exact-model coverage is not documented.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 10-year compressor · 10-year parts · 2-year labor. The catalog lists these warranty periods. Full eligibility and exclusions need verification.
Catalog image shows alternate outdoor-unit styles, not two outdoor units in one kit.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Warranty document
- Outdoor — Submittal sheet
- Outdoor — AHRI certification
- Outdoor — Energy guide
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
