Olympus 9K System
Olympus 9K System
Draft preview. Purchasing is disabled.
OLYMPUS E Star® Series. 9K · 230 V. Wall-mounted single-zone heat pump system.
Includes a 25 ft copper line set.
A different line-set length is an additional purchase with no credit. The factory line set remains included.
Item specifics
- Cooling capacity (BTU/h)
- 9000
- SEER2
- 27.4
- Voltage (V)
- 230
- Preliminary area estimate
- 375.0 sq ft

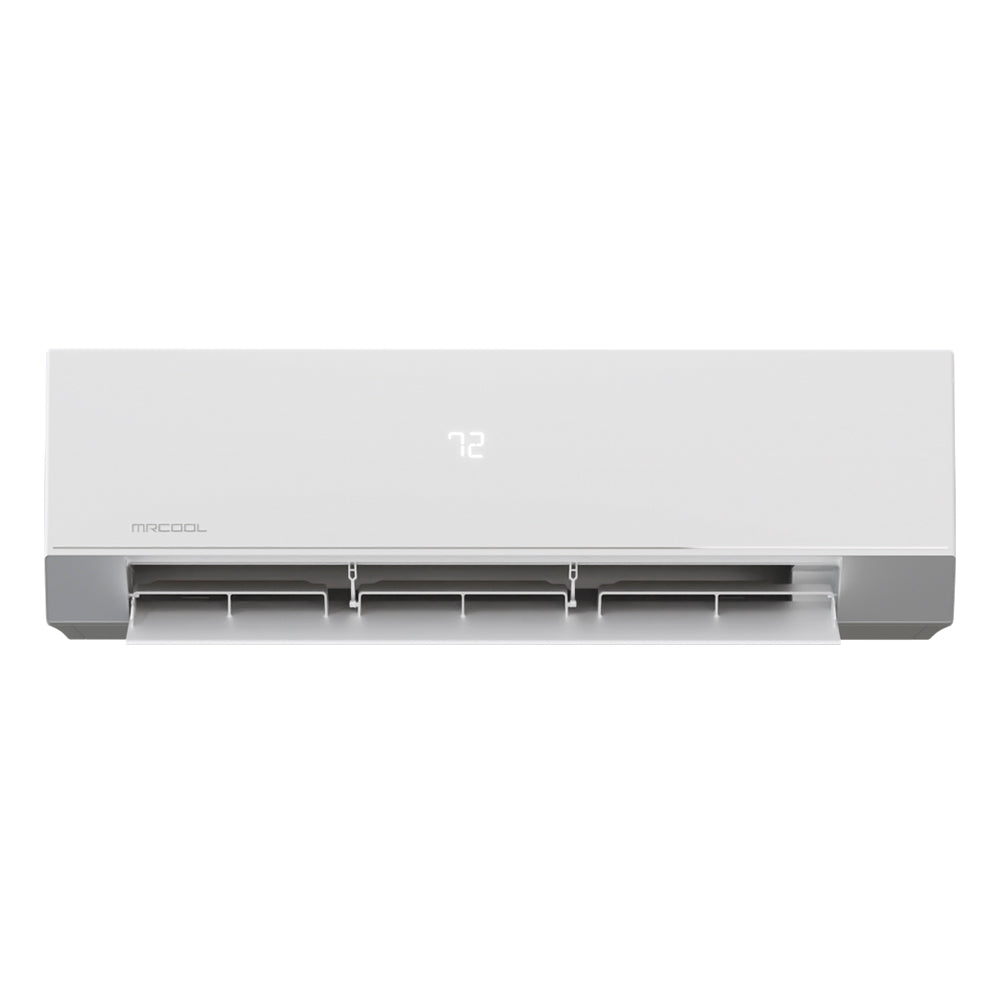

- Indoor unit dimensions (W × D × H)
- 33.74 × 9.09 × 11.81 in
- Indoor unit packing dimensions (W × D × H)
- 36.22 × 12.20 × 14.57 in
- Indoor unit net weight
- 23.37 lb
- Indoor unit packed gross weight
- 29.98 lb

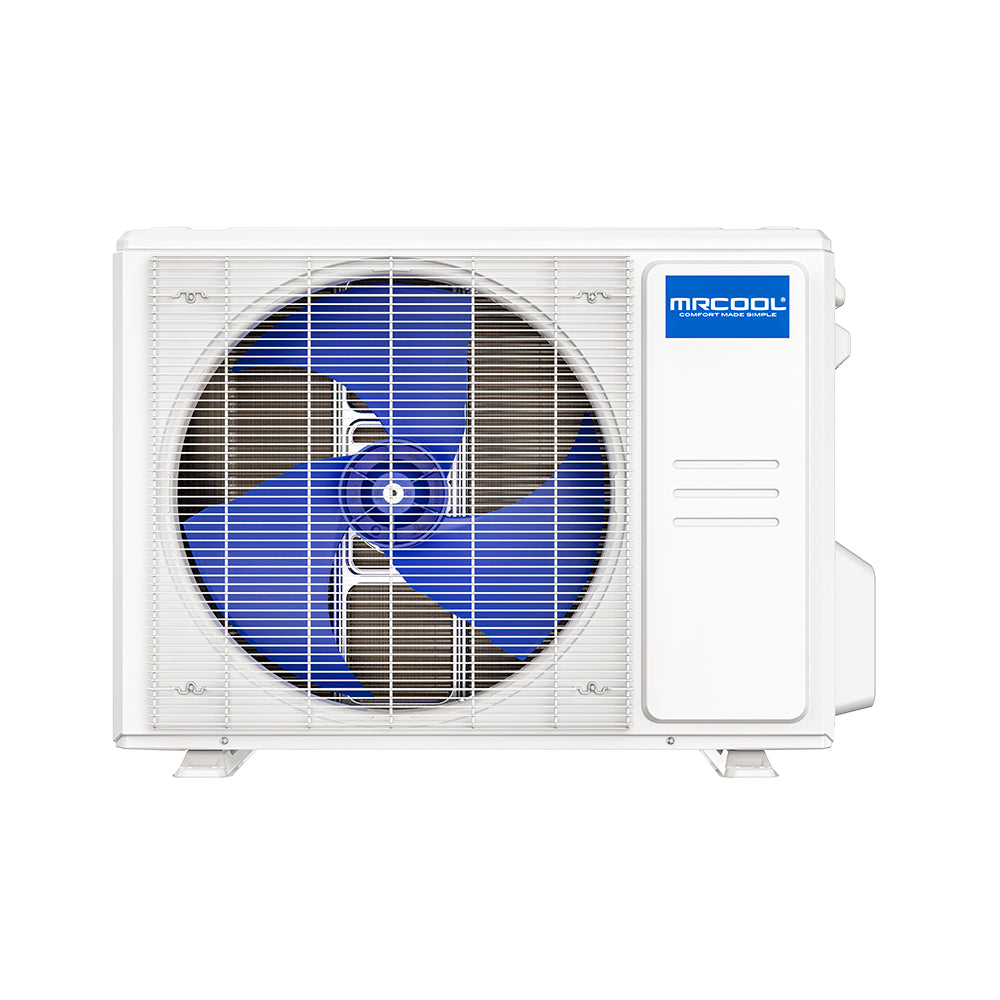

- Outdoor condenser dimensions (W × D × H)
- 31.69 × 12.99 × 21.81 in
- Outdoor condenser packing dimensions (W × D × H)
- 36.02 × 14.57 × 24.21 in
- Outdoor condenser net weight
- 72.75 lb
- Outdoor condenser packed gross weight
- 78.7 lb
- System configuration
- One matched outdoor condenser and one wall-mounted indoor unit
- Compatible line-set connections
- Olympus copper line set; 1/4 in liquid / 3/8 in gas
Preliminary 12K per 500 sq ft estimate, used only where exact-model coverage is not documented.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 7-year compressor · 5-year parts. The catalog lists these warranty periods. Full eligibility, registration requirements and exclusions need verification.

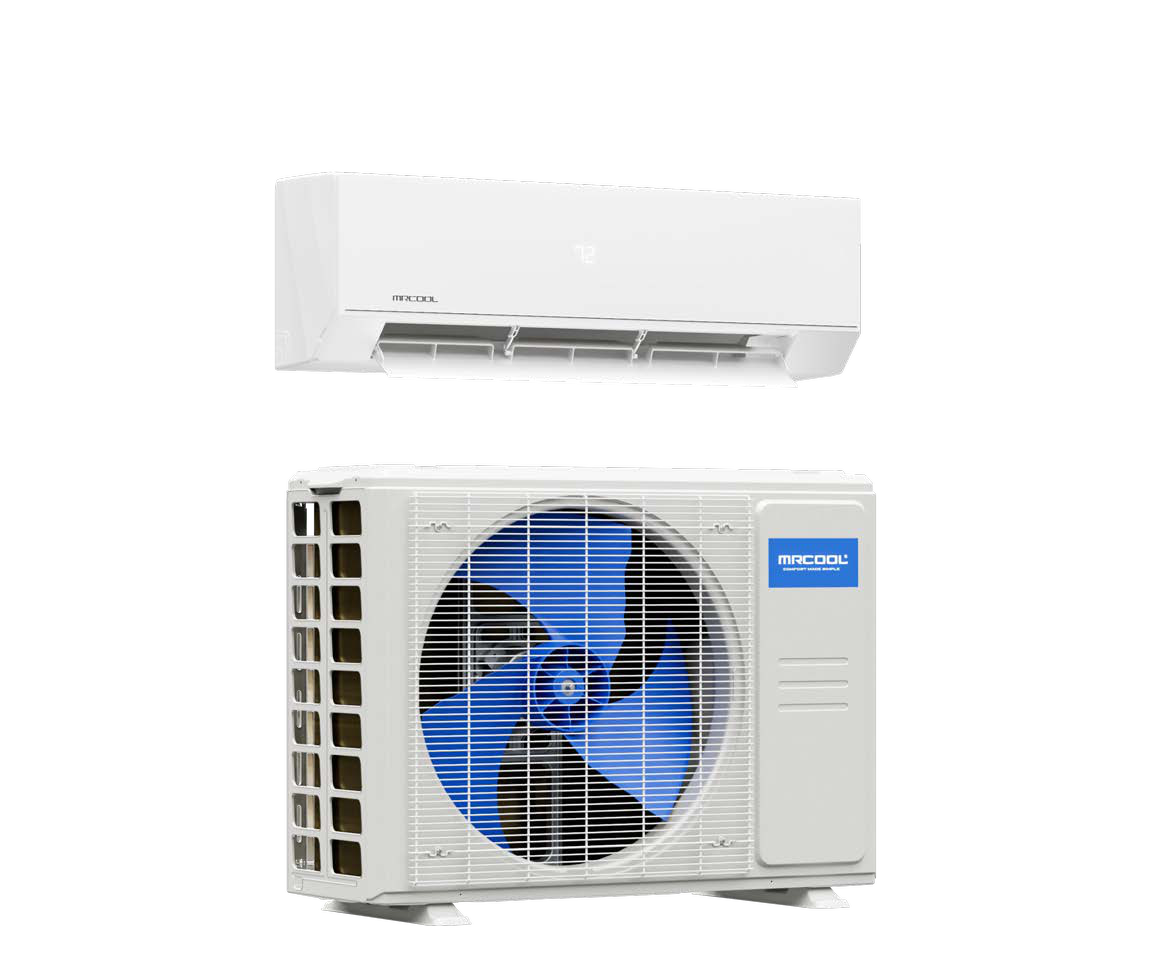

Family illustration, not confirmation of exact kit contents.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Warranty document
- Outdoor — Submittal sheet
- Outdoor — AHRI certification
- Outdoor — Energy guide
- Indoor — Specifications
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
