VersaPro 48K System
VersaPro 48K System
Draft preview. Purchasing is disabled.
2nd Gen VersaPro® Central Ducted System. 48K · 230 V. Complete ducted split system.
Item specifics
- Cooling capacity (BTU/h)
- 48000
- SEER2
- 16
- Voltage (V)
- 230
- Preliminary area estimate
- 2000.0 sq ft
- Indoor air handler net weight
- 162.92 lb
- Indoor air handler packed gross weight
- 190.92 lb
- Outdoor condenser dimensions (W × D × H)
- 38.58 × 16.34 × 38.39 in
- Outdoor condenser packing dimensions (W × D × H)
- 45.08 × 19.68 × 42.52 in
- Outdoor condenser net weight
- 192.9 lb
- Outdoor condenser packed gross weight
- 224.21 lb
- System configuration
- Matched outdoor heat pump and indoor ducted air handler
- Compatible line-set connections
- NO-VAC R-454B line set; 3/8 in liquid / 3/4 in gas
Preliminary 12K per 500 sq ft estimate, used only where exact-model coverage is not documented.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 10-year parts · 10-year compressor. The catalog lists these warranty periods. Full eligibility and exclusions need verification.

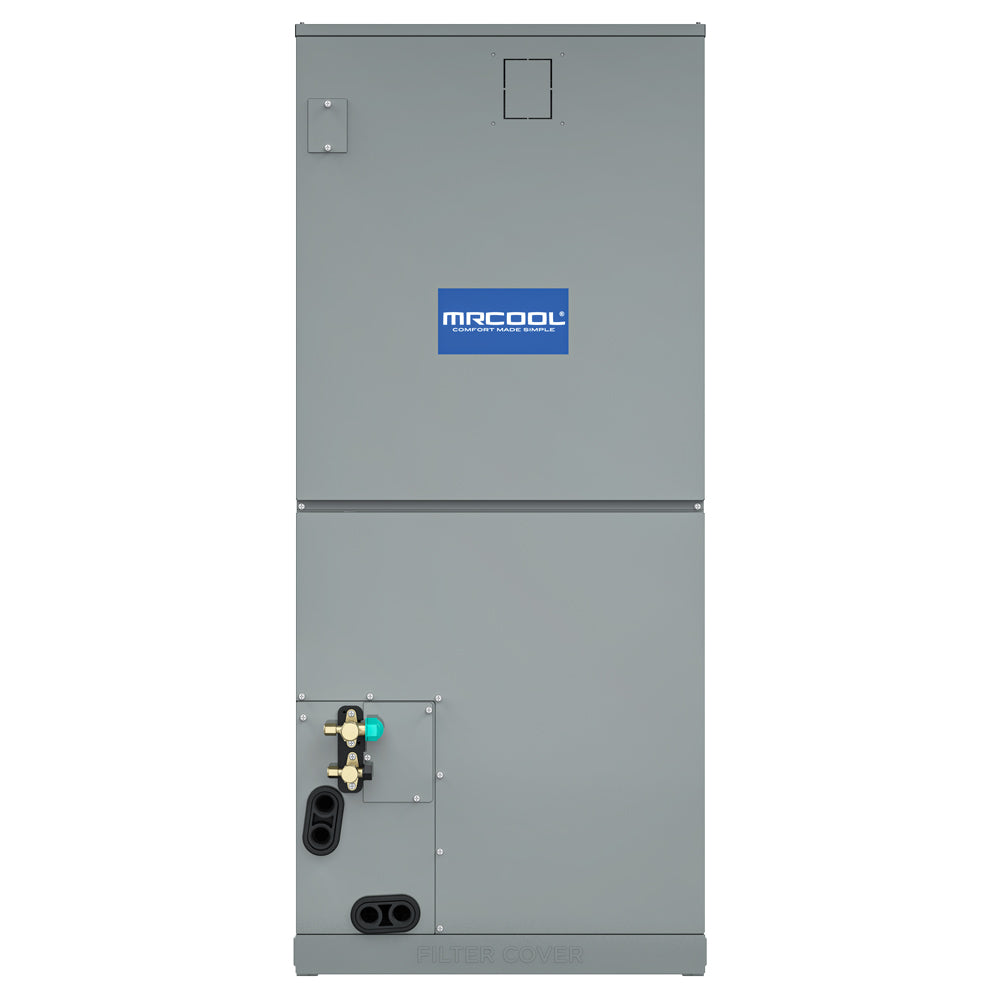

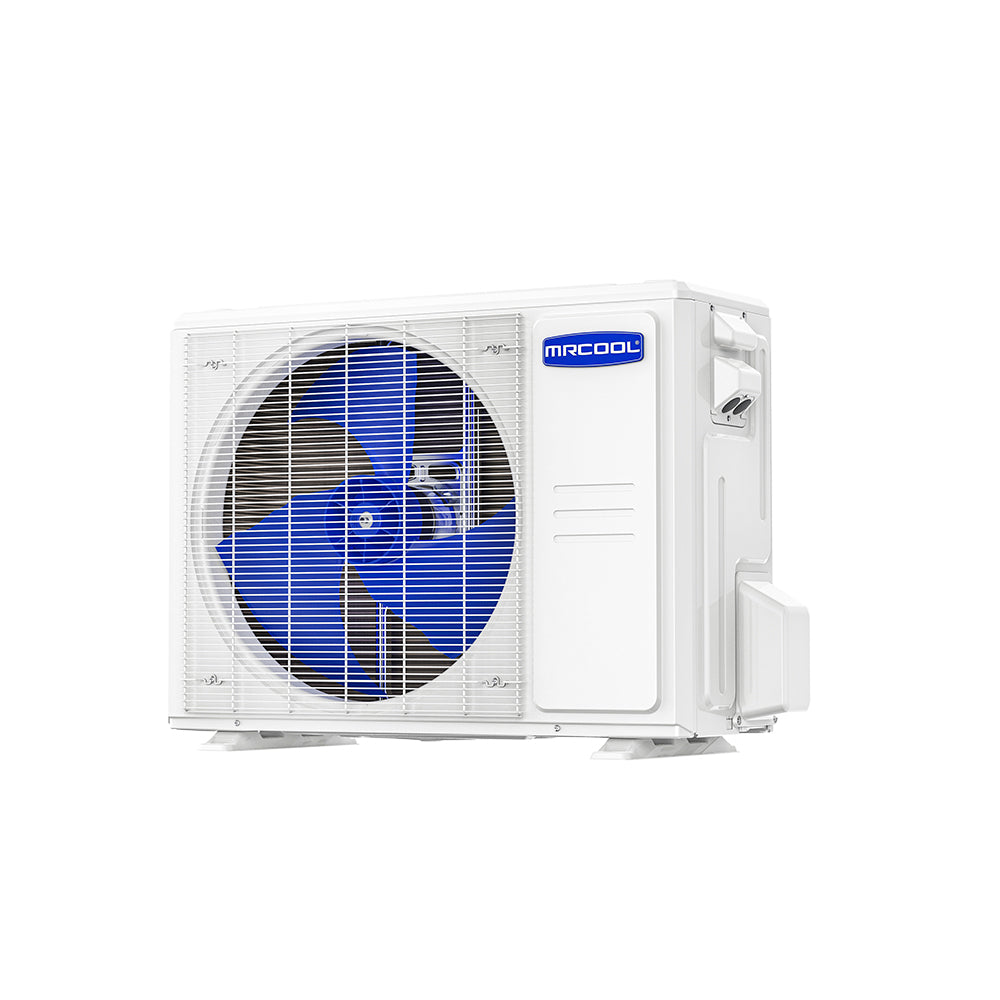

Family illustration, not confirmation of exact kit contents.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Specifications
- Outdoor — Warranty document
- Outdoor — Submittal sheet
- Outdoor — AHRI certification
- Outdoor — Energy guide
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
