2nd Gen VersaPro® Central Ducted System. 18K · 230 V. Complete ducted split system.
Item specifics
- Cooling capacity (BTU/h)
- 18000
- SEER2
- 18.8
- Voltage (V)
- 230
- Preliminary area estimate
- 750.0 sq ft

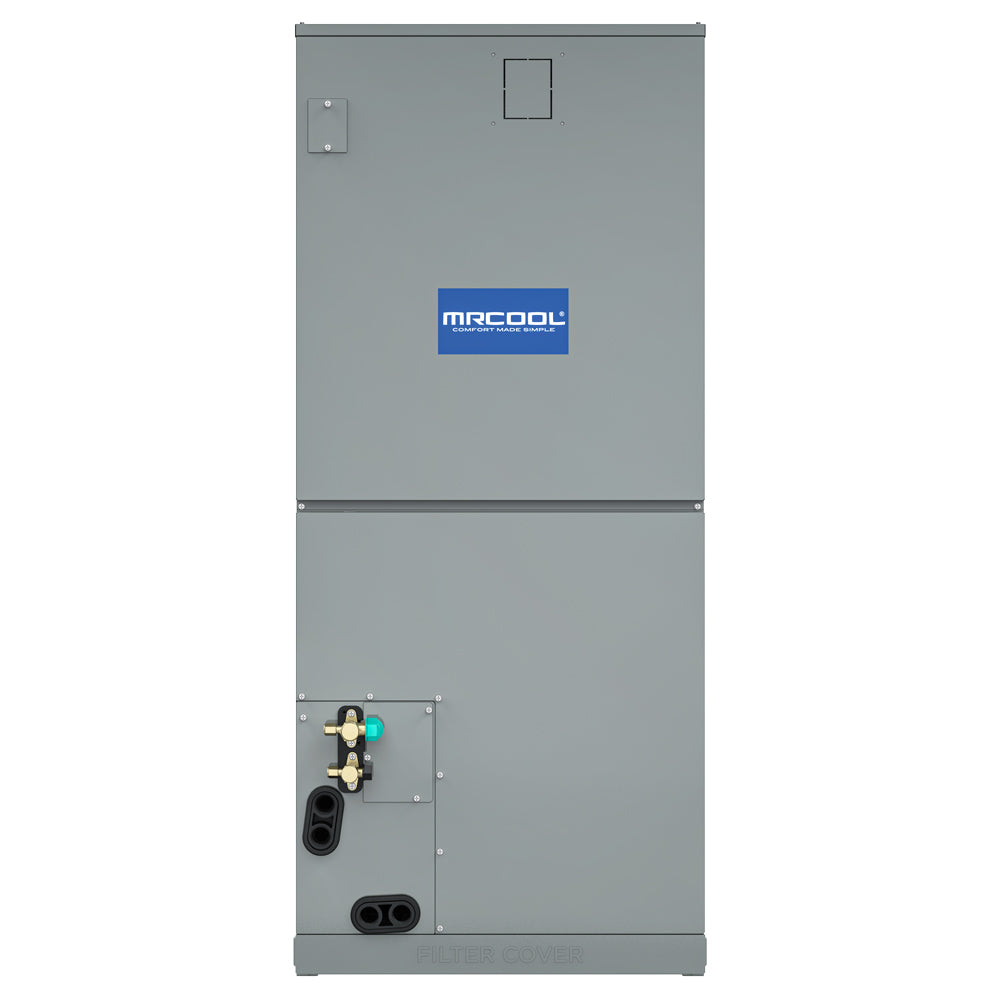

- Indoor air handler dimensions (W × D × H)
- 17.52 × 21.02 × 45 in
- Indoor air handler packing dimensions (W × D × H)
- 20.87 × 26.57 × 48.62 in
- Indoor air handler net weight
- 105.82 lb
- Indoor air handler packed gross weight
- 126.76 lb

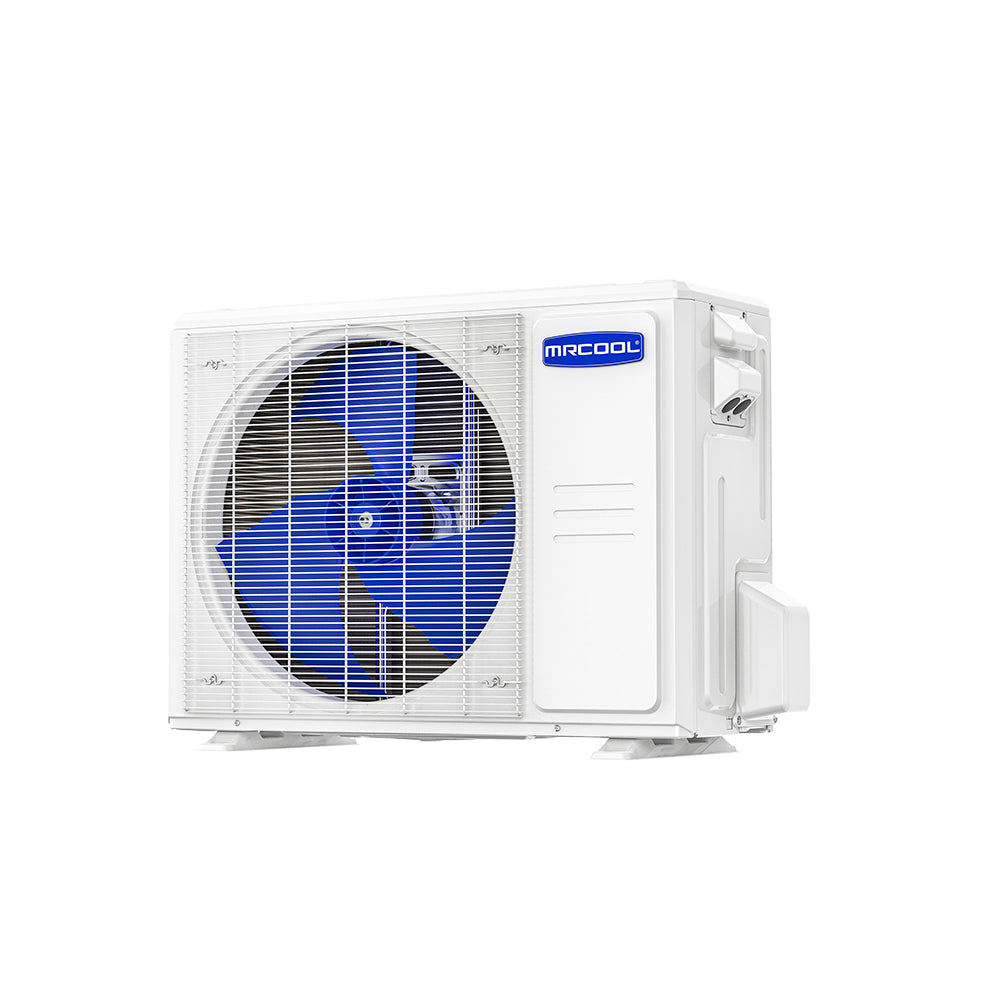

- Outdoor condenser dimensions (W × D × H)
- 31.69 × 12.99 × 21.81 in
- Outdoor condenser packing dimensions (W × D × H)
- 36.02 × 14.57 × 24.21 in
- Outdoor condenser net weight
- 77.16 lb
- Outdoor condenser packed gross weight
- 83.77 lb
- System configuration
- Matched outdoor heat pump and indoor ducted air handler
- Compatible line-set connections
- NO-VAC R-454B line set; 3/8 in liquid / 3/4 in gas
Preliminary 12K per 500 sq ft estimate, used only where exact-model coverage is not documented.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 10-year parts · 10-year compressor. The catalog lists these warranty periods. Full eligibility and exclusions need verification.

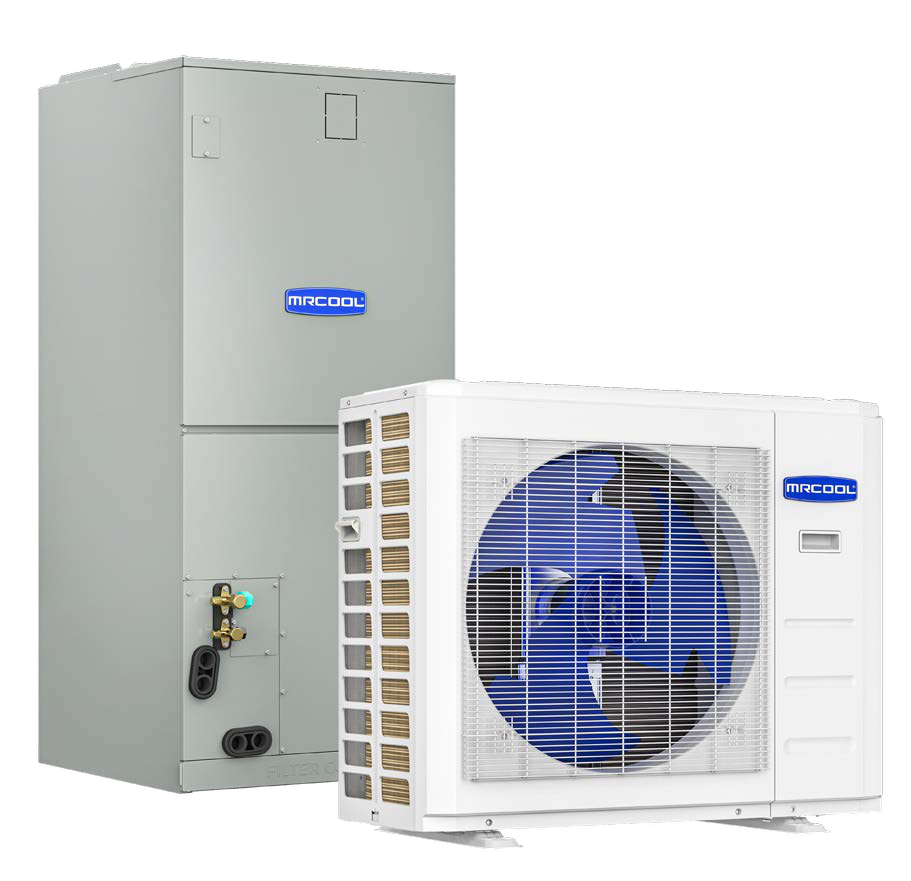

Family illustration, not confirmation of exact kit contents.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Specifications
- Outdoor — Warranty document
- Outdoor — Submittal sheet
- Outdoor — AHRI certification
- Outdoor — Energy guide
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
