DIY® Easy Pro® Series Do-It-Yourself Mini-Split. 24K · 230 V. Wall-mounted single-zone heat pump system.
Includes a 11.5 ft line set.
A different line-set length is an additional purchase with no credit. The factory line set remains included.
Item specifics
- Cooling capacity (BTU/h)
- 24000
- SEER2
- 18.9
- Voltage (V)
- 230
- Published maximum coverage
- 1050 sq ft

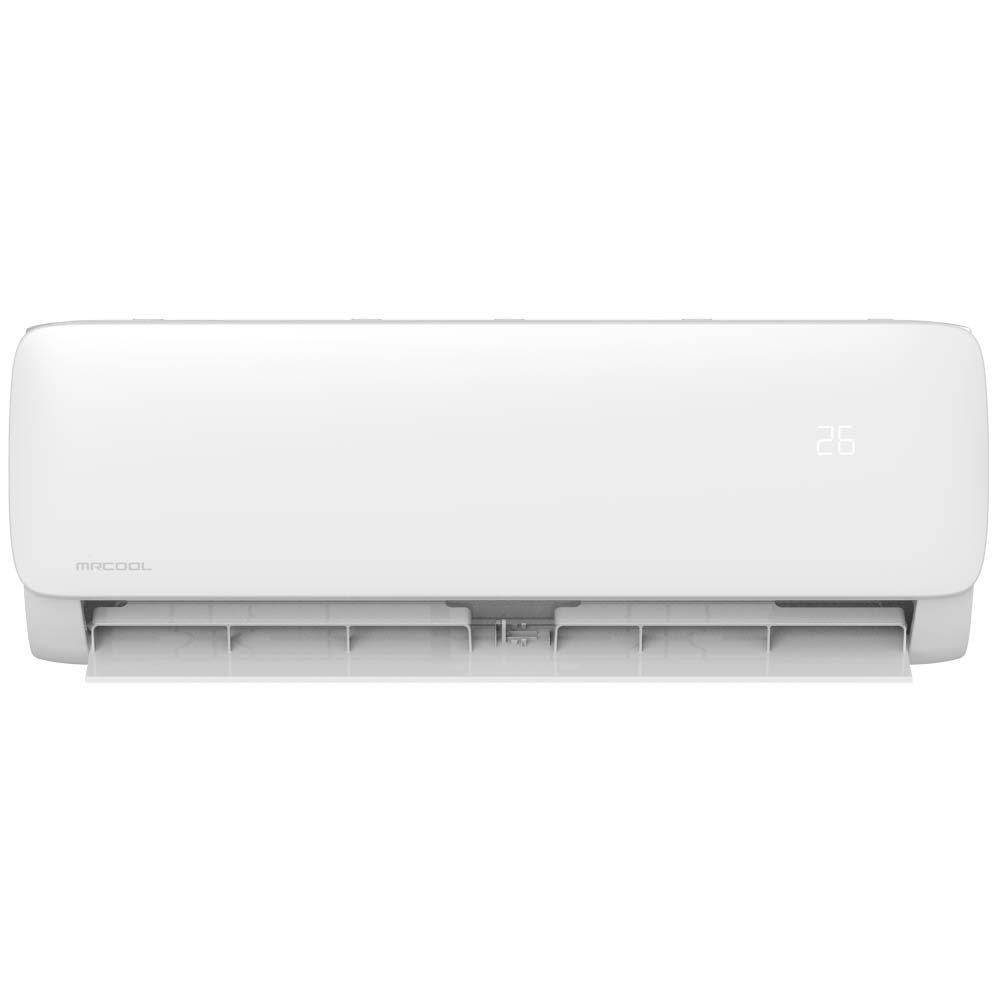

- Indoor unit dimensions (W × D × H)
- 42.60 × 9.21 × 13.27 in
- Indoor unit packing dimensions (W × D × H)
- 46.73 × 17.67 × 14.09 in
- Indoor unit net weight
- 35.49 lb
- Indoor unit packed gross weight
- 49.60 lb

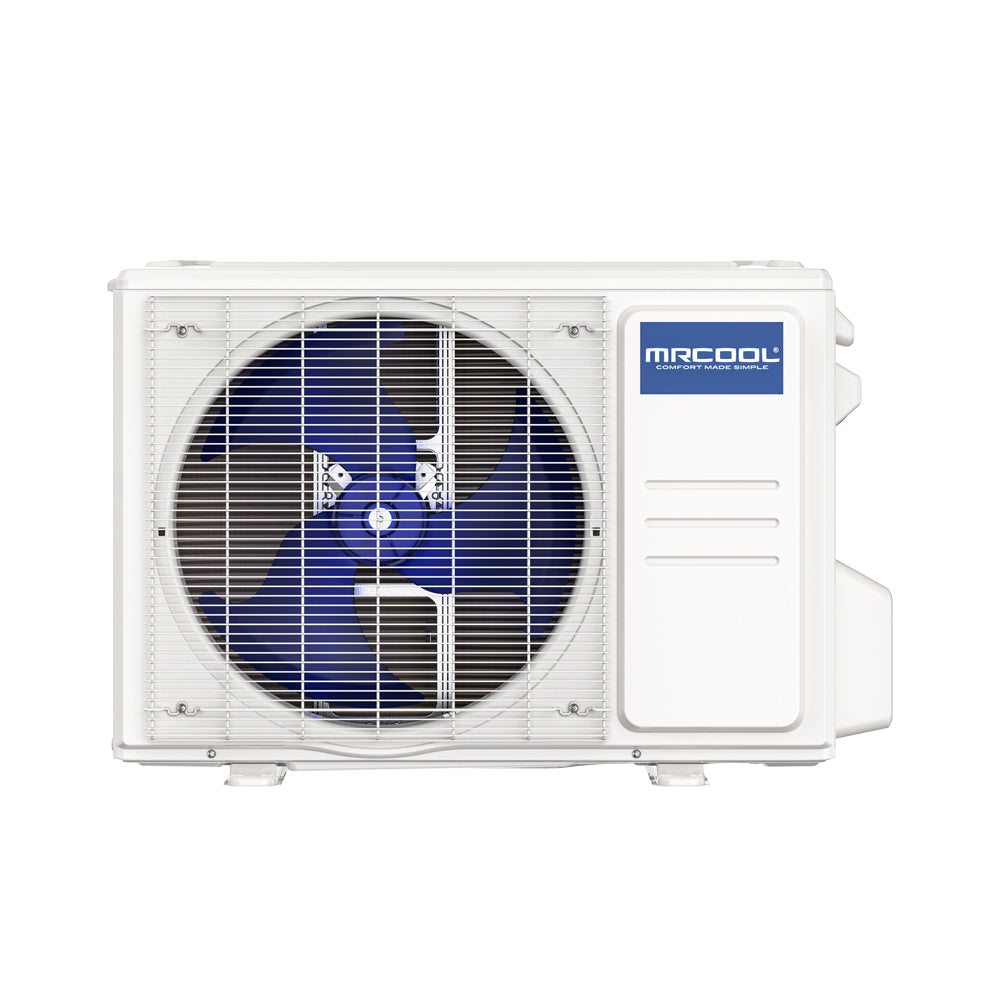

- Outdoor condenser dimensions (W × D × H)
- 35.04 × 13.46 × 26.50 in
- Outdoor condenser packing dimensions (W × D × H)
- 39.17 × 15.67 × 29.13 in
- Outdoor condenser net weight
- 95.90 lb
- Outdoor condenser packed gross weight
- 117.73 lb

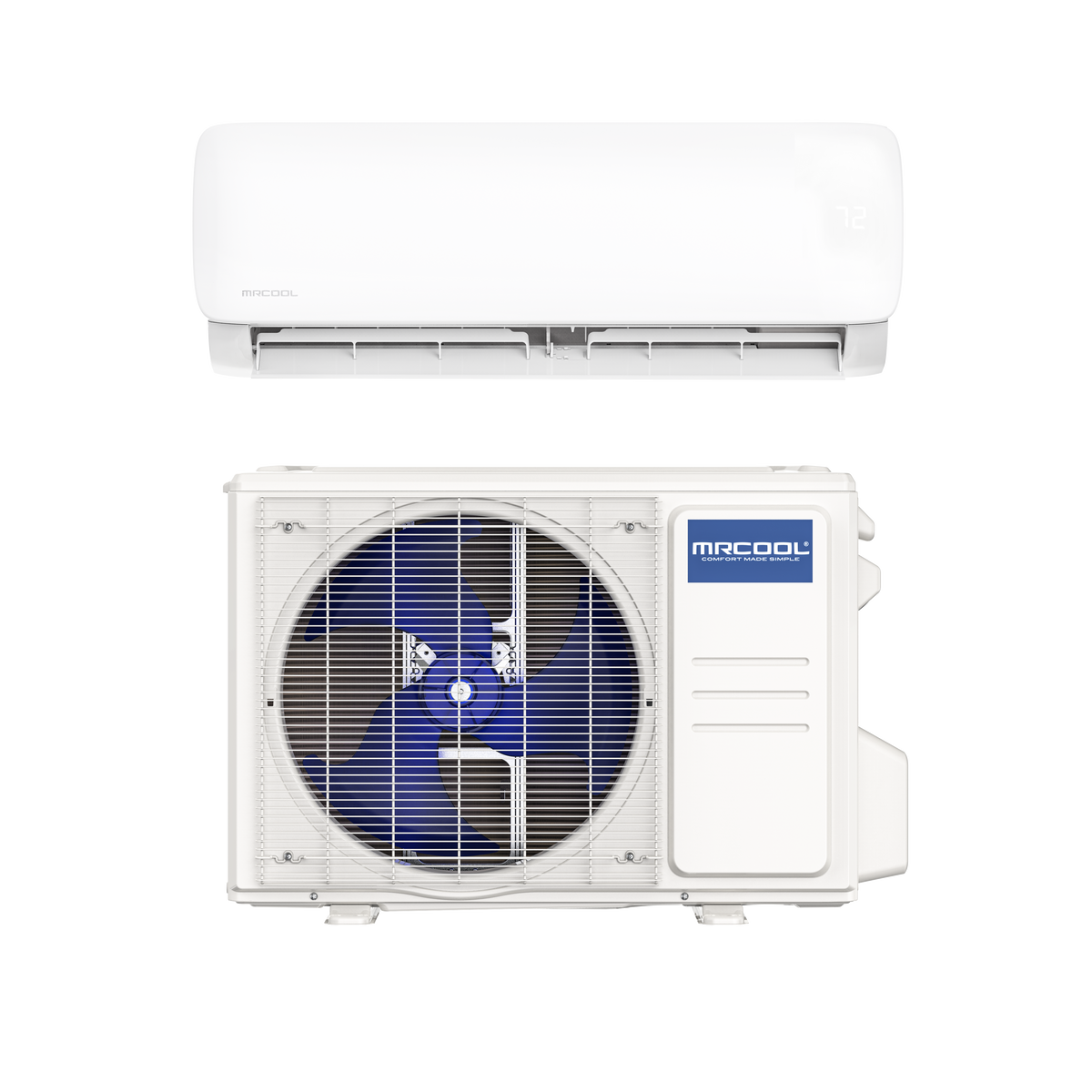

- System configuration
- One matched outdoor condenser and one wall-mounted indoor unit
- Compatible line-set connections
- DIY Quick Connect R-454B line set; 3/8 in liquid / 5/8 in gas
Published maximum under ideal conditions; not a load calculation or a guarantee for every building.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 5-year compressor · 3-year parts. The catalog lists these warranty periods. Full eligibility, registration requirements and exclusions need verification.
Family illustration, not confirmation of exact kit contents.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Warranty document
- Outdoor — AHRI certification
- Outdoor — Energy guide
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
