DIY Easy Pro 9K System
DIY Easy Pro 9K System
Draft preview. Purchasing is disabled.
DIY® Easy Pro® Series Do-It-Yourself Mini-Split. 9K · 115 V. Wall-mounted single-zone heat pump system.
Includes a 11.5 ft line set.
A different line-set length is an additional purchase with no credit. The factory line set remains included.
Item specifics
- Cooling capacity (BTU/h)
- 9000
- SEER2
- 20.2
- Voltage (V)
- 115
- Published maximum coverage
- 400 sq ft
- Indoor unit dimensions (W × D × H)
- 28.70 × 7.87 × 11.50 in
- Indoor unit packing dimensions (W × D × H)
- 32.68 × 16.14 × 13.58 in
- Indoor unit net weight
- 23.81 lb
- Indoor unit packed gross weight
- 33.95 lb
- Outdoor condenser dimensions (W × D × H)
- 28.35 × 10.63 × 19.49 in
- Outdoor condenser packing dimensions (W × D × H)
- 32.87 × 10.63 × 21.26 in
- Outdoor condenser net weight
- 54.67 lb
- Outdoor condenser packed gross weight
- 66.58 lb
- System configuration
- One matched outdoor condenser and one wall-mounted indoor unit
- Compatible line-set connections
- DIY Quick Connect R-454B line set; 1/4 in liquid / 3/8 in gas
Published maximum under ideal conditions; not a load calculation or a guarantee for every building.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 5-year compressor · 3-year parts. The catalog lists these warranty periods. Full eligibility, registration requirements and exclusions need verification.

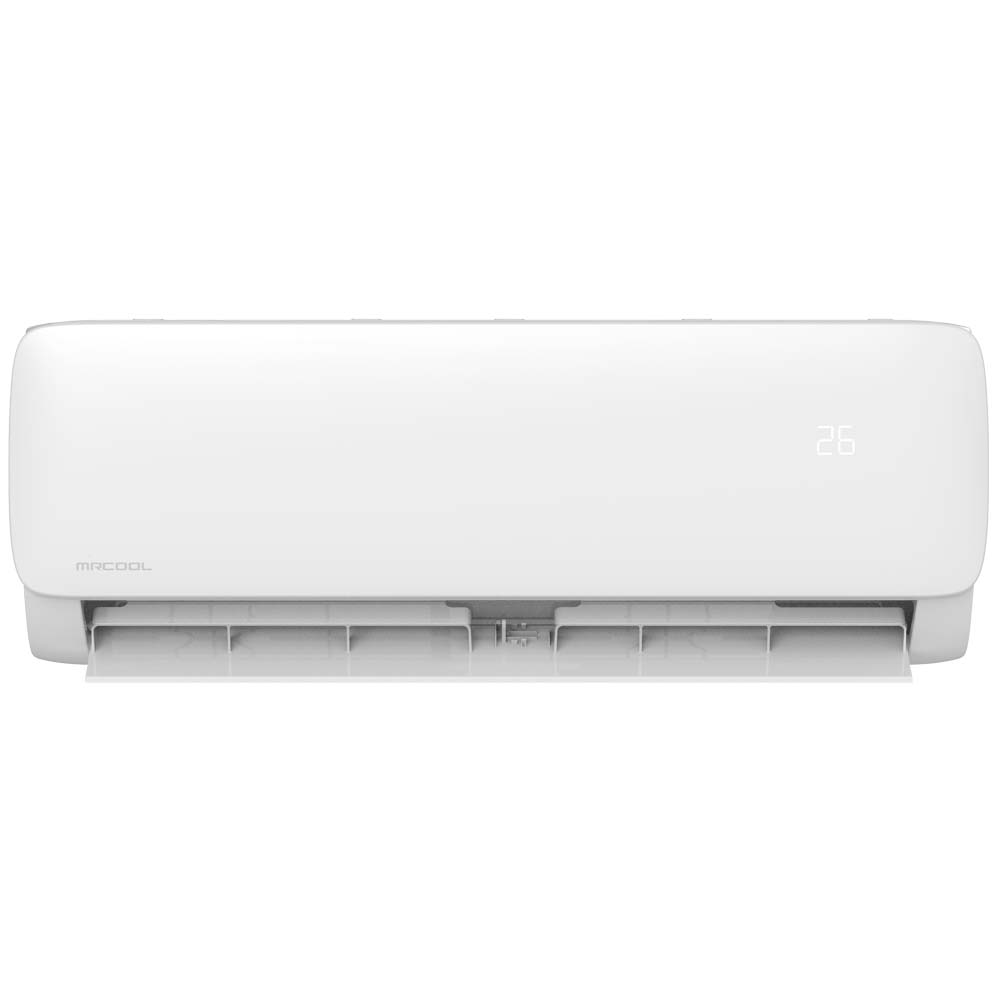

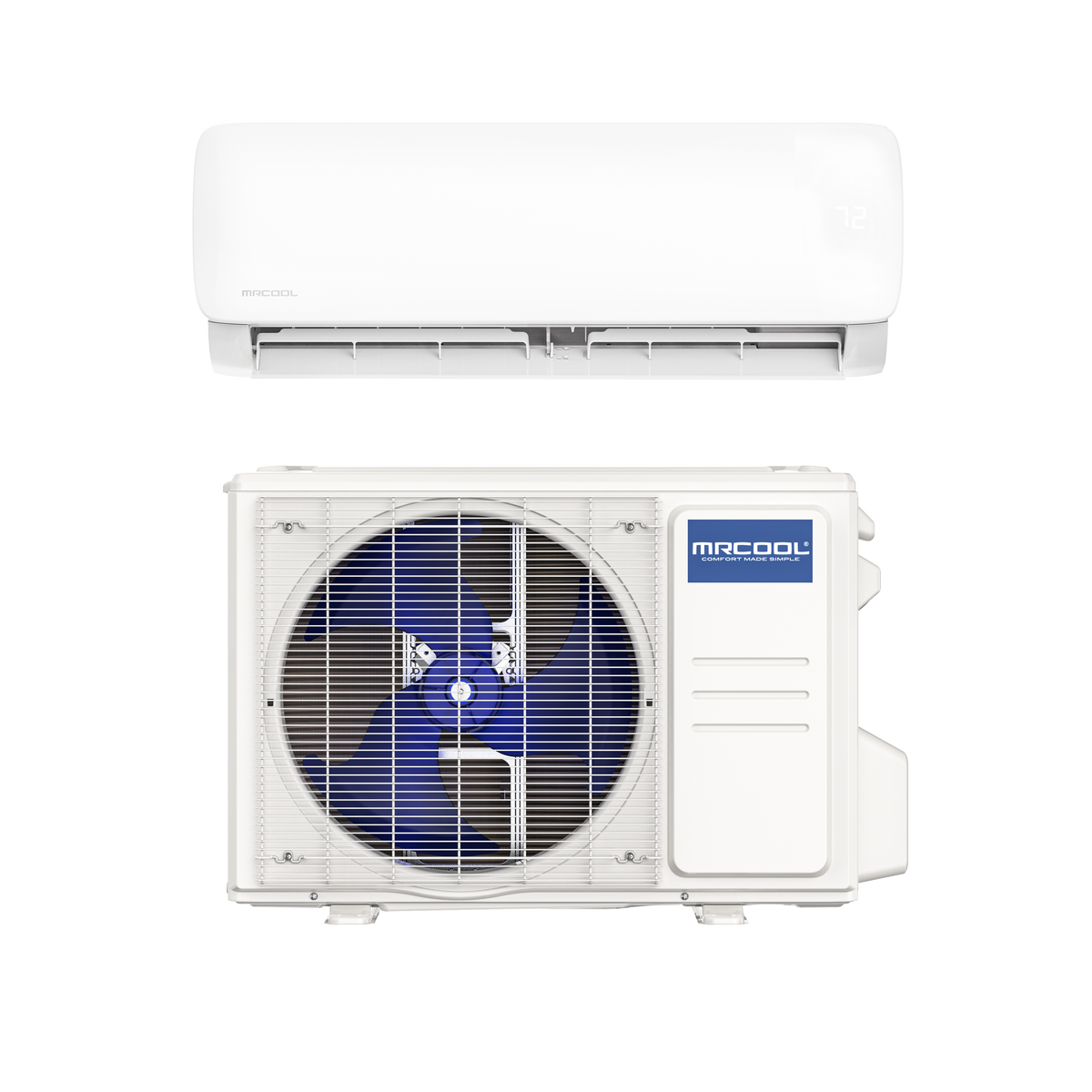

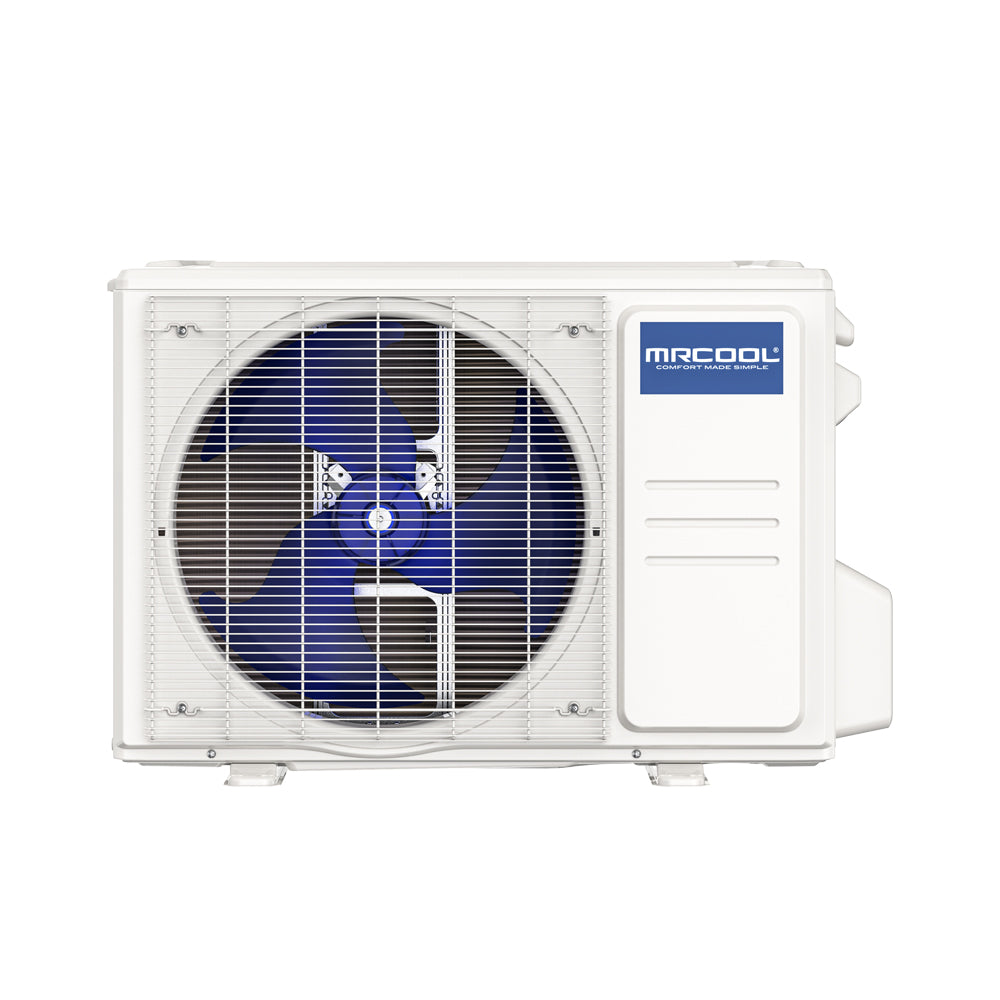

Family illustration, not confirmation of exact kit contents.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Warranty document
- Outdoor — AHRI certification
- Outdoor — Energy guide
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
