DIY Select 18K System
DIY Select 18K System
Draft preview. Purchasing is disabled.
DIY® Select Single Zone. 17,000 BTU/h · 230 V · White. Wall-mounted single-zone heat pump system.
Includes a 11.5 ft line set.
A different line-set length is an additional purchase with no credit. The factory line set remains included.
Item specifics
- Cooling capacity (BTU/h)
- 17000
- SEER2
- 17.3
- Voltage (V)
- 230
- Finish
- white
- Published maximum coverage
- 800 sq ft

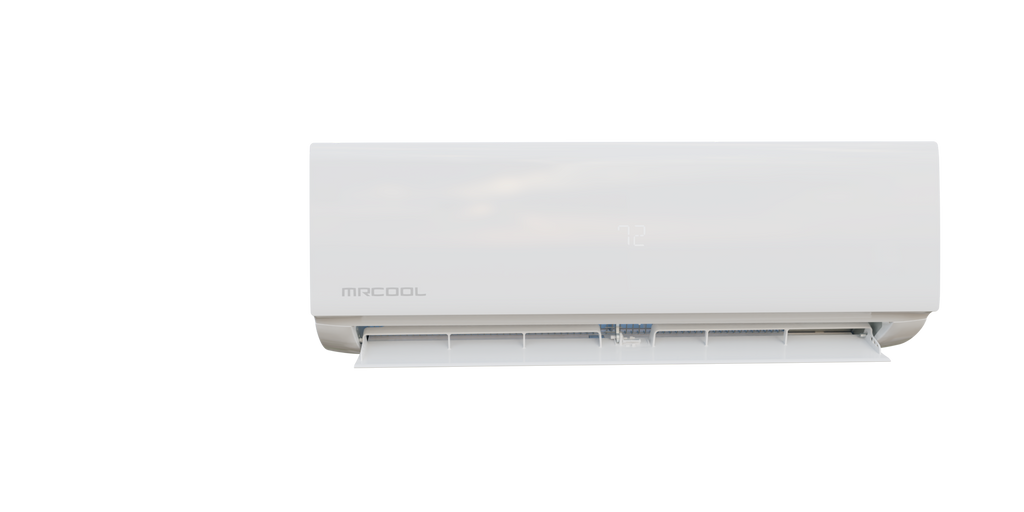

- Indoor unit dimensions (W × D × H)
- 38.23 × 8.98 × 12.64 in
- Indoor unit packing dimensions (W × D × H)
- 42.1 × 16.9 × 14.8 in
- Indoor unit net weight
- 30.64 lb
- Indoor unit packed gross weight
- 44.97 lb

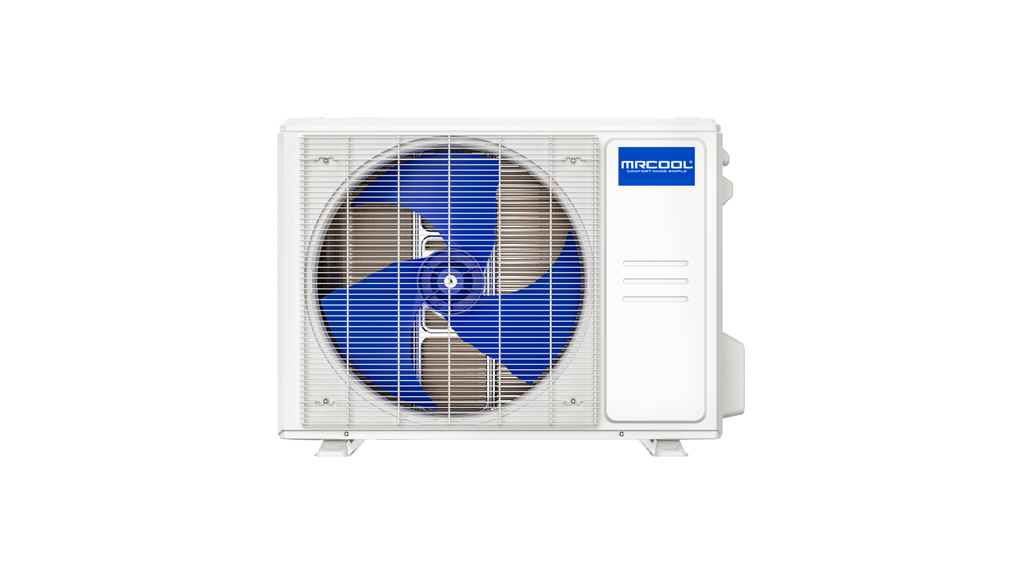

- Outdoor condenser dimensions (W × D × H)
- 30.12 × 11.93 × 21.85 in
- Outdoor condenser packing dimensions (W × D × H)
- 34.4 × 14.4 × 24 in
- Outdoor condenser net weight
- 62.61 lb
- Outdoor condenser packed gross weight
- 82.23 lb
- System configuration
- One matched outdoor condenser and one wall-mounted indoor unit
- Compatible line-set connections
- DIY Quick Connect R-454B line set; 1/4 in liquid / 1/2 in gas
Published maximum under ideal conditions; not a load calculation or a guarantee for every building.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 2-year compressor · 1-year parts. The catalog lists these warranty periods. Full eligibility, registration requirements and exclusions need verification.
Family illustration, not confirmation of exact kit contents.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Warranty document
- Outdoor — AHRI certification
- Outdoor — Energy guide
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
