DIY 12K System
DIY 12K System
Draft preview. Purchasing is disabled.
5th Gen DIY® Single Zone. 12K · 115 V. Wall-mounted single-zone heat pump system.
Includes a 25 ft line set.
A different line-set length is an additional purchase with no credit. The factory line set remains included.
Item specifics
- Cooling capacity (BTU/h)
- 12000
- SEER2
- 23.5
- Voltage (V)
- 115
- Published maximum coverage
- 550 sq ft
- Indoor unit dimensions (W × D × H)
- 31.57 × 7.44 × 11.69 in
- Indoor unit packing dimensions (W × D × H)
- 36.02 × 16.34 × 14.37 in
- Indoor unit net weight
- 24.91 lb
- Indoor unit packed gross weight
- 35.49 lb
- Outdoor condenser dimensions (W × D × H)
- 30.12 × 11.93 × 21.85 in
- Outdoor condenser packing dimensions (W × D × H)
- 36.22 × 16.54 × 27.56 in
- Outdoor condenser net weight
- 65.48 lb
- Outdoor condenser packed gross weight
- 83.11 lb
- System configuration
- One matched outdoor condenser and one wall-mounted indoor unit
- Compatible line-set connections
- DIY Quick Connect R-454B line set; 1/4 in liquid / 3/8 in gas
Published maximum under ideal conditions; not a load calculation or a guarantee for every building.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 7-year compressor · 5-year parts. The catalog lists these warranty periods. Full eligibility, registration requirements and exclusions need verification.

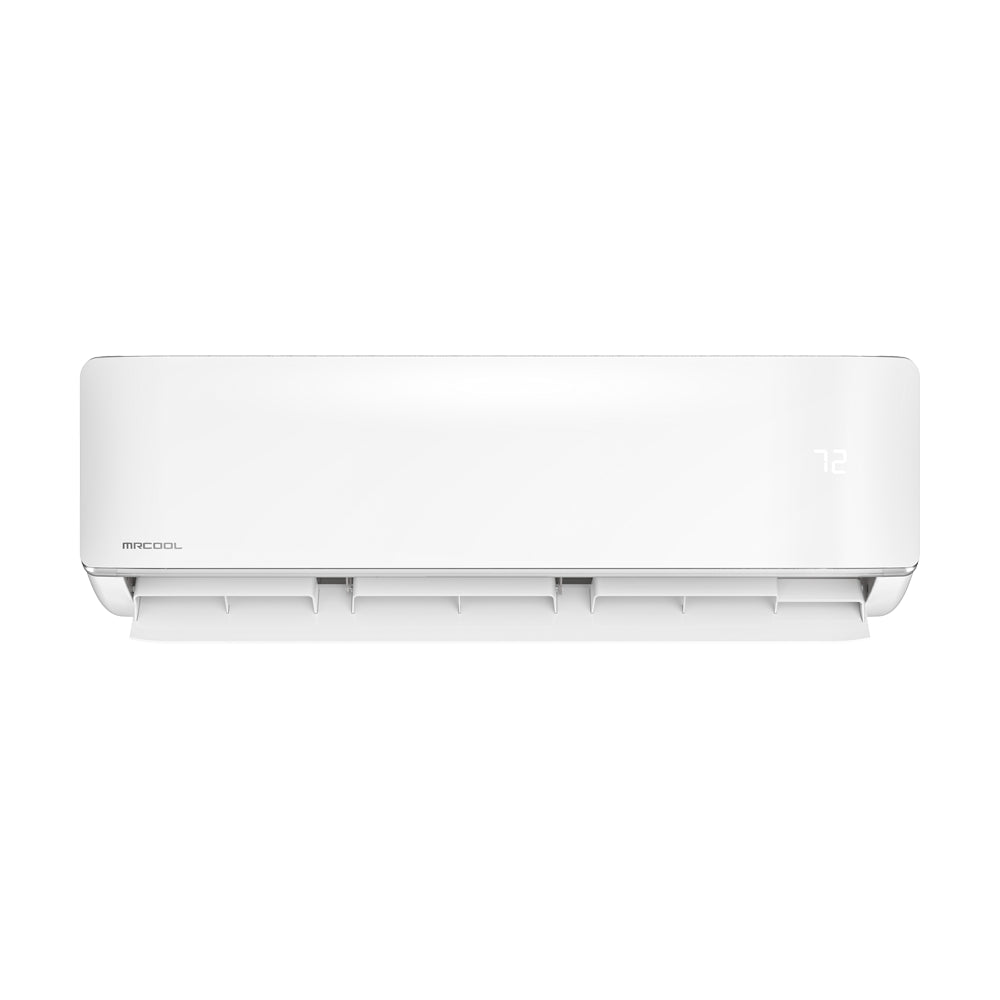

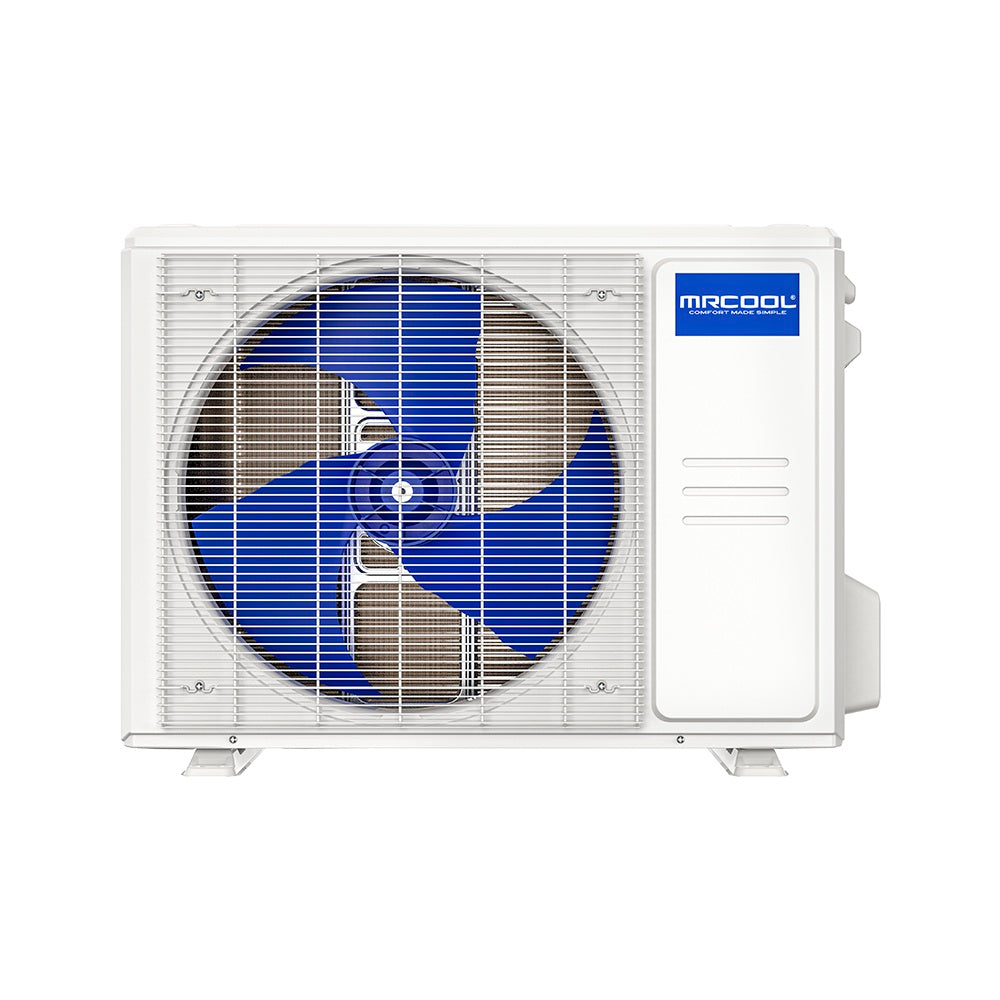

Family illustration, not confirmation of exact kit contents.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Specifications
- Outdoor — Owner manual
- Outdoor — Warranty document
- Outdoor — AHRI certification
- Outdoor — Energy guide
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
