Hyper Heat 60K System
Hyper Heat 60K System
Draft preview. Purchasing is disabled.
2nd Gen Central Ducted Hyper Heat. 54K · 230 V. Complete ducted split system.
Item specifics
- Cooling capacity (BTU/h)
- 54000
- SEER2
- 16
- Voltage (V)
- 230
- Preliminary area estimate
- 2250.0 sq ft
- Indoor air handler net weight
- 162.92 lb
- Indoor air handler packed gross weight
- 190.92 lb
- Outdoor condenser dimensions (W × D × H)
- 37.48 × 16.34 × 52.48 in
- Outdoor condenser packing dimensions (W × D × H)
- 43.11 × 19.49 × 58.27 in
- Outdoor condenser net weight
- 242.95 lb
- Outdoor condenser packed gross weight
- 275.13 lb
- System configuration
- Matched outdoor heat pump and indoor ducted air handler
- Compatible line-set connections
- NO-VAC R-454B line set; 3/8 in liquid / 3/4 in gas
Preliminary 12K per 500 sq ft estimate, used only where exact-model coverage is not documented.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 10-year parts and labor · 10-year compressor. The catalog lists these warranty periods. Full eligibility and exclusions need verification.

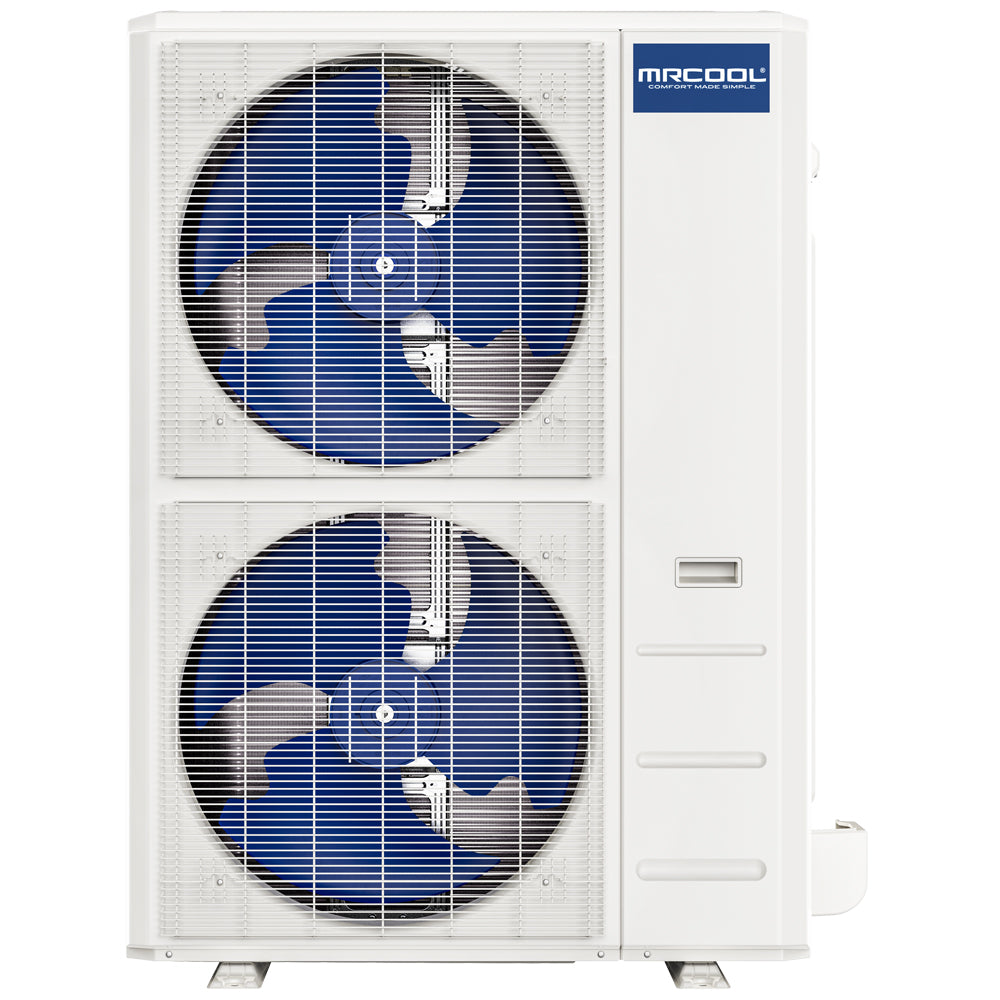

Catalog image shows alternate outdoor-unit styles, not two outdoor units in one kit.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Specifications
- Outdoor — Warranty document
- Outdoor — Submittal sheet
- Outdoor — AHRI certification
- Outdoor — Energy guide
- Indoor — Warranty document
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
