Hyper Heat 30K System
Hyper Heat 30K System
Draft preview. Purchasing is disabled.
2nd Gen Central Ducted Hyper Heat. 30K · 230 V. Complete ducted split system.
Item specifics
- Cooling capacity (BTU/h)
- 30000
- SEER2
- 16.8
- Voltage (V)
- 230
- Preliminary area estimate
- 1250.0 sq ft
- Indoor air handler dimensions (W × D × H)
- 21.02 × 21.02 × 49.02 in
- Indoor air handler packing dimensions (W × D × H)
- 26.57 × 24.41 × 52.56 in
- Indoor air handler net weight
- 128.97 lb
- Indoor air handler packed gross weight
- 153.44 lb
- Outdoor condenser dimensions (W × D × H)
- 37.24 × 16.14 × 31.89 in
- Outdoor condenser packing dimensions (W × D × H)
- 42.91 × 19.68 × 34.84 in
- Outdoor condenser net weight
- 164.02 lb
- Outdoor condenser packed gross weight
- 174.6 lb
- System configuration
- Matched outdoor heat pump and indoor ducted air handler
- Compatible line-set connections
- NO-VAC R-454B line set; 3/8 in liquid / 3/4 in gas
Preliminary 12K per 500 sq ft estimate, used only where exact-model coverage is not documented.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 10-year parts and labor · 10-year compressor. The catalog lists these warranty periods. Full eligibility and exclusions need verification.

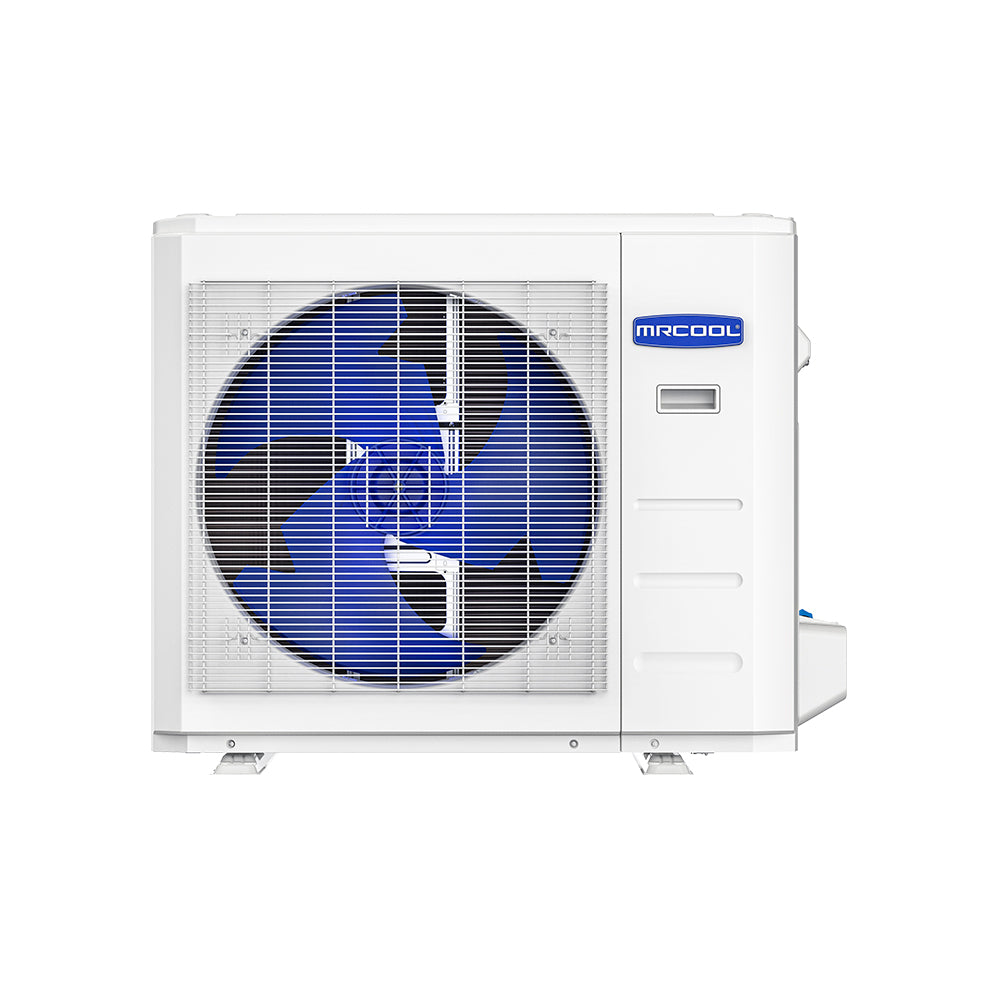

Catalog image shows alternate outdoor-unit styles, not two outdoor units in one kit.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Specifications
- Outdoor — Warranty document
- Outdoor — Submittal sheet
- Outdoor — AHRI certification
- Outdoor — Energy guide
- Indoor — Warranty document
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
