Advantage 24K System
Advantage 24K System
5th Gen Advantage Series. 24K · 230 V. Wall-mounted single-zone heat pump system.
Includes a 16 ft copper line set.
A different line-set length is an additional purchase with no credit. The factory line set remains included.
Item specifics
- Cooling capacity (BTU/h)
- 24000
- SEER2
- 18.7
- Voltage (V)
- 230
- Published maximum coverage
- 1050 sq ft
- Indoor unit dimensions (W × D × H)
- 42.52 × 8.9 × 13.19 in
- Indoor unit packing dimensions (W × D × H)
- 45.47 × 16.34 × 12.6 in
- Indoor unit net weight
- 30.64 lb
- Indoor unit packed gross weight
- 39.46 lb
- Outdoor condenser dimensions (W × D × H)
- 35.04 × 13.46 × 26.5 in
- Outdoor condenser packing dimensions (W × D × H)
- 39.17 × 15.67 × 29.13 in
- Outdoor condenser net weight
- 94.58 lb
- Outdoor condenser packed gross weight
- 102.29 lb
- System configuration
- One matched outdoor condenser and one wall-mounted indoor unit
Published maximum under ideal conditions; not a load calculation or a guarantee for every building.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 2-year compressor · 1-year parts. The catalog lists these warranty periods. Full eligibility, registration requirements and exclusions need verification.

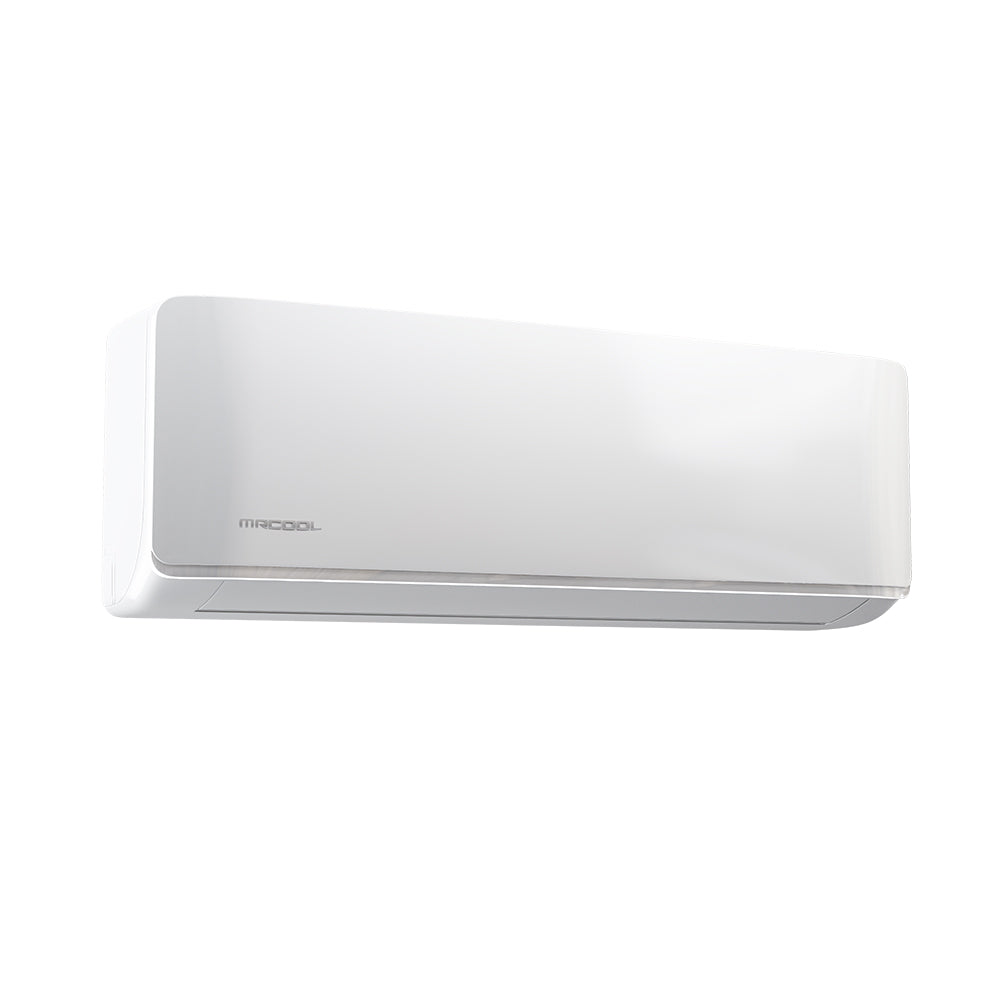

Family illustration, not confirmation of exact kit contents.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Specifications
- Outdoor — Warranty document
- Outdoor — Submittal sheet
- Outdoor — AHRI certification
- Outdoor — Energy guide
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
