Advantage 18K System
Advantage 18K System
5th Gen Advantage Series. 18K · 230 V. Wall-mounted single-zone heat pump system.
Includes a 16 ft copper line set.
A different line-set length is an additional purchase with no credit. The factory line set remains included.
Item specifics
- Cooling capacity (BTU/h)
- 18000
- SEER2
- 19.2
- Voltage (V)
- 230
- Published maximum coverage
- 800 sq ft
- Indoor unit dimensions (W × D × H)
- 37.99 × 8.46 × 12.56 in
- Indoor unit packing dimensions (W × D × H)
- 41.14 × 12.01 × 16.14 in
- Indoor unit net weight
- 24.47 lb
- Indoor unit packed gross weight
- 32.63 lb
- Outdoor condenser dimensions (W × D × H)
- 31.69 × 12.99 × 21.81 in
- Outdoor condenser packing dimensions (W × D × H)
- 36.02 × 14.57 × 24.21 in
- Outdoor condenser net weight
- 72.31 lb
- Outdoor condenser packed gross weight
- 78.48 lb
- System configuration
- One matched outdoor condenser and one wall-mounted indoor unit
Published maximum under ideal conditions; not a load calculation or a guarantee for every building.
Component packing dimensions and gross weights are not complete-shipment or pallet totals.
The equipment pairing is verified against the approved catalog. Confirm installation clearances, electrical supply and the complete line-set route before purchase.
Catalog warranty: 2-year compressor · 1-year parts. The catalog lists these warranty periods. Full eligibility, registration requirements and exclusions need verification.

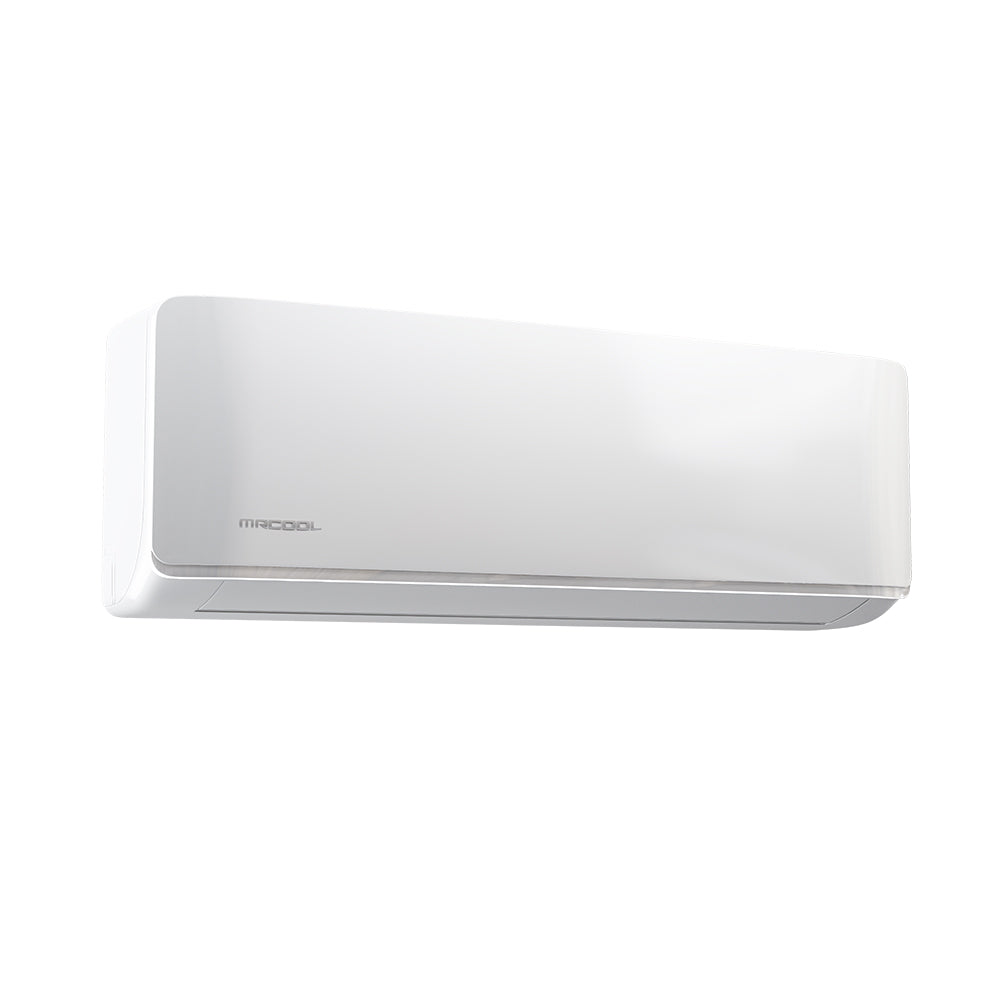

Family illustration, not confirmation of exact kit contents.
Manufacturer documents
- Outdoor — Brochure
- Outdoor — Installation manual
- Outdoor — Specifications
- Outdoor — Warranty document
- Outdoor — Submittal sheet
- Outdoor — AHRI certification
- Outdoor — Energy guide
Documents describe the named components. Verify matched-system requirements and applicable warranty terms before purchase.
Free shipping
